Black Holes During the Cosmic Dawn


Editor’s note: Astrobites is a graduate-student-run organization that digests astrophysical literature for undergraduate students. As part of the partnership between the AAS and astrobites, we occasionally repost astrobites content here at AAS Nova. We hope you enjoy this post from astrobites; the original can be viewed at

Title: Observing the influence of growing black holes on the pre-reionization IGM
Authors: Evgenii Vasiliev, Shiv Sethi, & Yuri Shchekinov
First Author’s Institution: Southern Federal University, Russia
Status: Published in ApJ

Cosmologically important phenomena are typically discussed on the scales of gigaparsecs (Gpc); to give you some idea of the sizes involved, one Gpc could fit approximately 33,000 Milky Way galaxies end to end. With that crazy scale in mind, today we’ll gain an understanding for how parsec-scale astrophysical events can have far-reaching effects cosmologically.

Cosmic Dawn and Reionization

The cosmological period prior to the reionization of the universe’s hydrogen is typically described as being the cosmic dawn. This stage in the history of the universe is marked by the formation of the first stars and galaxies. But it doesn’t end there — connecting these large structures throughout the universe is the intergalactic medium (IGM). The IGM during the cosmic dawn consists of mostly neutral hydrogen, and compared to galaxies, it is much less dense (10-27 kg/m3 compared to the average density of our Milky Way, which is ~10-19 kg/m3). The ultraviolet (UV) radiation from these early stars and galaxies are what most astronomers and cosmologists believe led to reionization. Put simply, this ionizing radiation extended symmetrically from these sources and over time these regions of reionized IGM began to overlap, leading to complete reionization of the universe. While this is our current best guess, cosmologists typically wonder: What roles do other structures play during this period? One type of galaxy of interest are those containing Active Galactic Nuclei (AGN), which are galaxies with very dense cores with a supermassive black hole (SMBH) at their centers accreting matter. These AGN are extremely luminous and can produce a lot of X-ray and UV emissions. What we’ll be exploring today is how these SMBHs influence the surrounding regions.

Early Black Holes

The very first black holes were most likely few and far between and should have had masses several orders of magnitude less than what can be observed today (but in light of new detections we may need to question this). This follows from the fact that for black holes to exist, you need some form of already dense matter to collapse under extreme gravitational conditions. These conditions, however, weren’t as ripe during the cosmic dawn, as matter was just starting to clump together to form behemoth objects such as Population III stars. During this time, AGN were fueled by accretion onto the type of early SMBHs today’s astrobite investigates.

SMBHs at the center of AGN affect the IGM through reionizing and heating of the gas. This is because as the SMBH accretes local matter, hard non-thermal radiation is emitted. So how does the accretion rate of these early black holes influence the surrounding regions? We should expect there to be some relationship between the rate of matter accretion to the distance of influence.  Directly following from this, we should also be able to see how observable an object like this might be by using a radio interferometer. Luckily we have the authors from today’s astrobite paper to help answer this for us.

The authors model the accretion according to the above equation, which relies on the initial black hole mass, MBH,t=0, the radiative efficiency ε that tells us how easily matter is converted to radiation, and the Eddington timescale of TE = 0.45 Gyr (read more here). This is then related to the resulting ionizing luminosity, which they assume to have a power-law relationship, and this eventually leads us to the ionizing radiation flux.

brightness temperatures

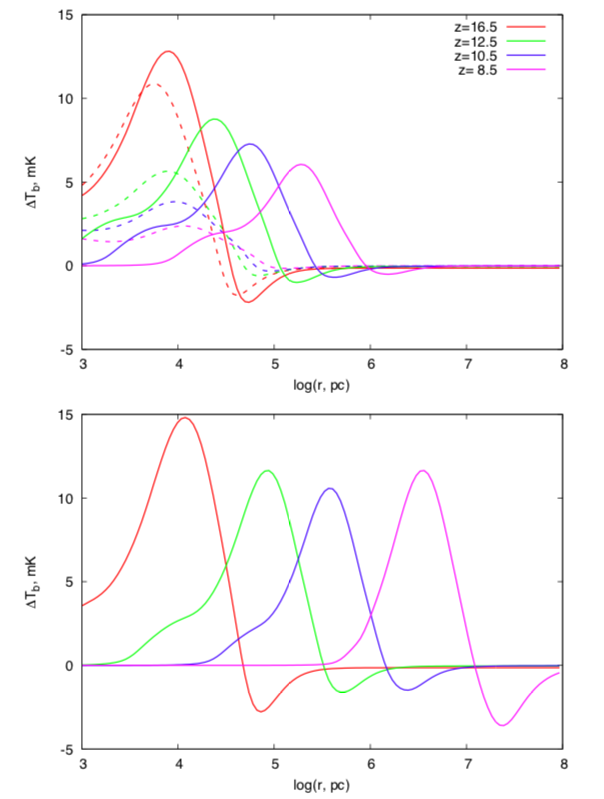

Figure 1: The relationship between brightness temperature and the distance of ‘influence’ of ionizing radiation plotted at several redshifts. The upper plot is for a ε = 0.1 and the bottom plot for ε = 0.05. [Vasiliev et al. 2018]

These growing black holes are placed in a host halo of neutral hydrogen where the effects of the ionizing/heating front radius can be related to an observable differential brightness temperature, ΔTb, which measures the difference between the background Cosmic Microwave Background temperature and the neutral hydrogen 21cm line. Their results for a black hole with an initial mass of 300 solar masses starting at redshift of z ~ 20 with the radiative efficiencies of ε = 0.1 (upper) and ε = 0.05 (lower) can be seen in Figure 1. They also compare a non-growing black hole (dashed) as a point of reference.

We can see from Figure 1 that growing black holes should exert the largest influence in terms of distance from the black hole, when compared to non-accreting (dashed). The authors show us that accreting black holes during the early universe can have an influence on the scales of 10 kpc to 1 Mpc. This is of course a very large dynamic range that accreting black holes can influence.

These distances convert to just about the correct angular scales that radio interferometers, such as LOFAR, might be able to probe, which is certainly an exciting prospect. This would be a huge achievement as being able to probe down to the kpc scales and link them to phenomena seen at some of the largest scales could provide us some much needed information on how the earliest black holes formed.

About the author, Joshua Kerrigan:

I’m a 5th year PhD student at Brown University studying the early universe through the 21cm neutral hydrogen emission. I do this by using radio interferometer arrays such as the Precision Array for Probing the Epoch of Reionization (PAPER) and the Hydrogen Epoch of Reionization Array (HERA).
